Established in 2020, Draking Semiconductor was jointly founded by the core team of a leading Chinese semiconductor listed company and core technical personnel from world-leading companies.
-
-
The company has assembled a strong R&D and process team, continuously improving in aspects such as diamond powder material selection and dispersion, electroplating technology, precision processing technology, and adhesive formulation.
-
Draking Semiconductor Technology can perform dicing on chips such as IGBT chips, SiC chips, lithium tantalate/lithium niobate chips, integrated circuit IC chips, and double-bonded chips, as well as on packages such as QFN and DFN, and ceramic and glass substrates.
-
-
Solutions
Double-layer bonded chip
Committed to providing customers with high-quality domestic cutting, grinding, and polishing products and solutions!
Blade type:
Electroplated soft blade-toothless
DRSC-SD2000M-75-S0
54*0.04*40
DRSC-SD2000M-75-S0
54*0.04*40
Processing object information
1. Processing object: 500μm glass + 500μm silicon
2. Cutting path width: 100μm
3. Die size: 6.2*6.2mm
Cutting process
1. Cutting mode: single cut
2. Cutting speed: 5mm/s
3. Cutting water flow: shower 1L/min，blade 1.5L/min
4. Dicing film model: D-485H

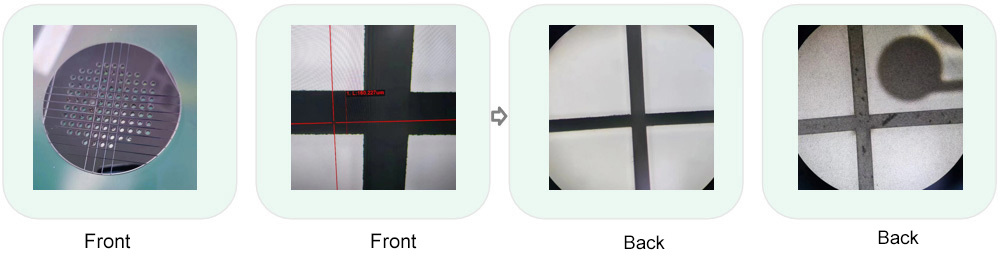

Effect diagram
