Solutions
LED lamp beads
Committed to providing customers with high-quality domestic cutting, grinding, and polishing products and solutions!
Blade type:
Electroplated soft blade - with sawtooth
DRSC-SD500M-75 -S48W1D2
58*0.2*40
DRSC-SD500M-75 -S48W1D2
58*0.2*40
Processing object information
1. LED bead thickness: 2000μm
2. Die size: 3.7*3.7mm
Cutting process
1. Cutting mode: single cut
2. Cutting speed: 6mm/s
3. Cutting water flow: shower 1.5L/min，blade 1.5L/min
4. Cutting water temperature: 16~20℃

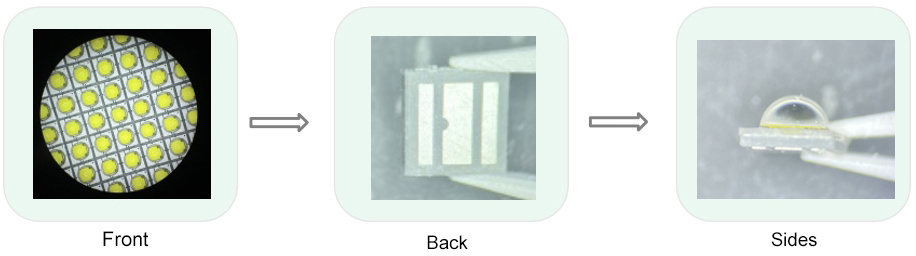

Effect diagram
